China Plastic Industrial Supplier
Plastic Raw Materials, Custom Moulds & Injection Molding Machines
We supply PP, PET, PVC, ABS polymer raw materials, custom plastic moulds and injection molding machines with stable factory supply, strict inspection, customs declaration and logistics service for global buyers.
Products
Top Categories

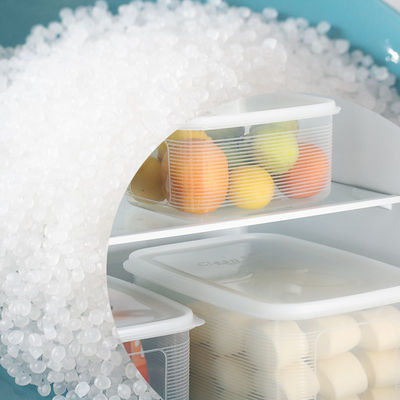

PP Plastic Granules
View More

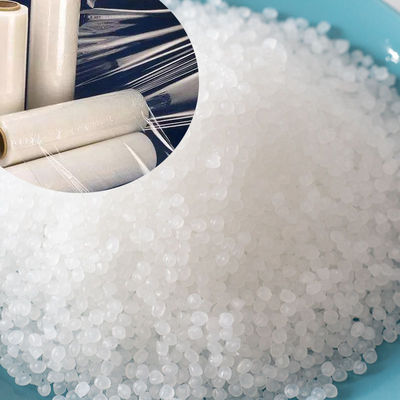

Film Grade PP Plastic Granules Raw Material Homopolymer Polypropylene Resins
Get Best Price

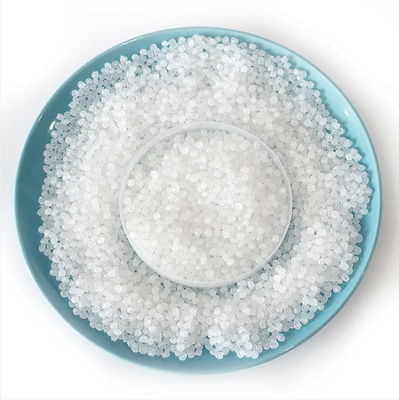

Disposable Injector PP Plastic Raw Material Polypropylene Resin Pellets
Get Best PricePET Plastic Granules
View More

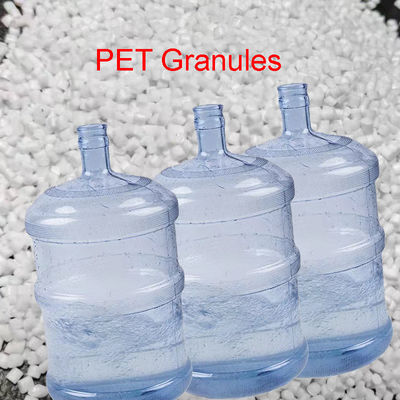

Non Carbonated Bottle Grade PET Plastic Granules Raw Material High Density
Get Best Price

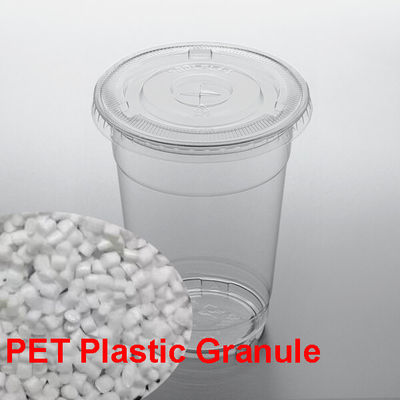

Clear Plastic Cup PET Virgin Granules Customized Color PET Bottle Raw Material
Get Best PricePVC Raw Material
View More

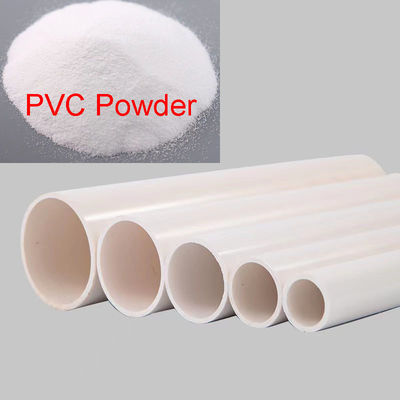

Virgin PVC Powder S1000 PVC Raw Material For Water Conduit
Get Best Price

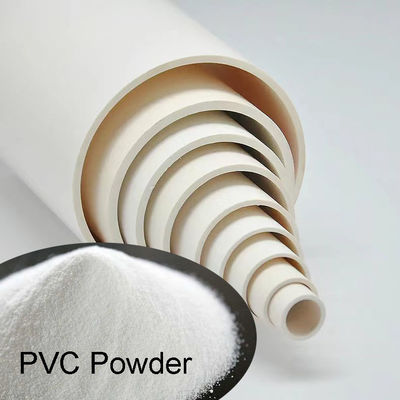

White Color Polyvinyl Chloride Pure PVC Resin Powder For Big Size Pipe
Get Best Price

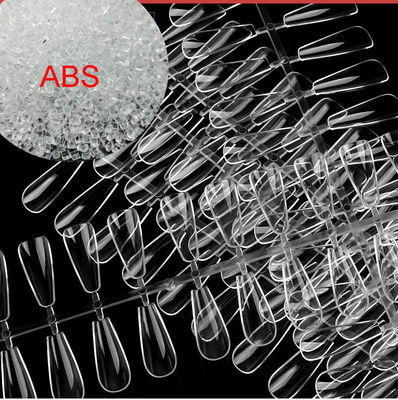

Transparent ABS Natural Granules Plastic Raw Material ABS Chips
Get Best Price

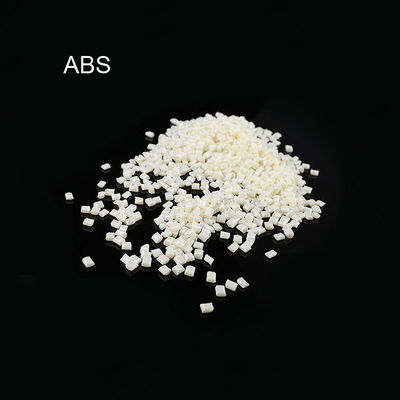

Engineering Plastic ABS Resin Natural Virgin ABS Plastic Granules
Get Best PriceMould Project
Plastic Injection Moulds

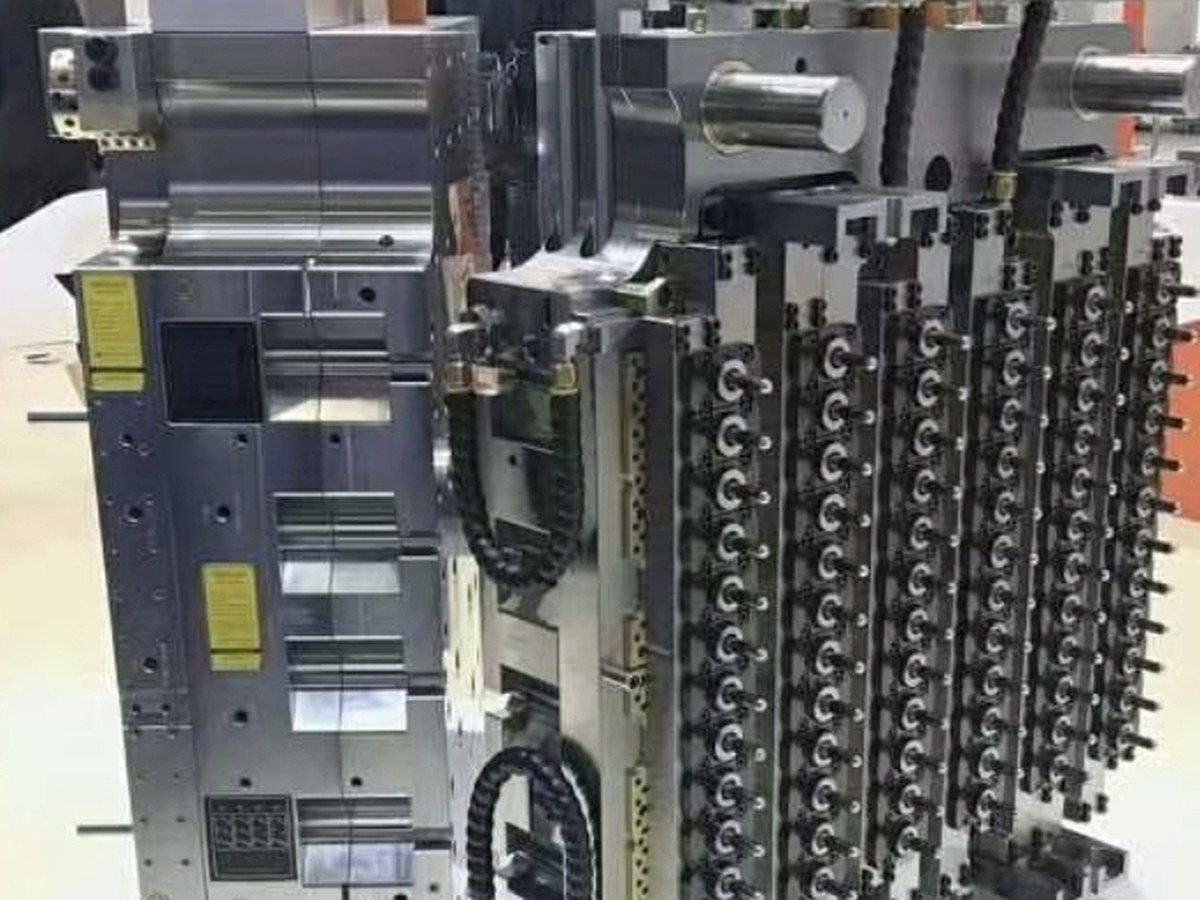

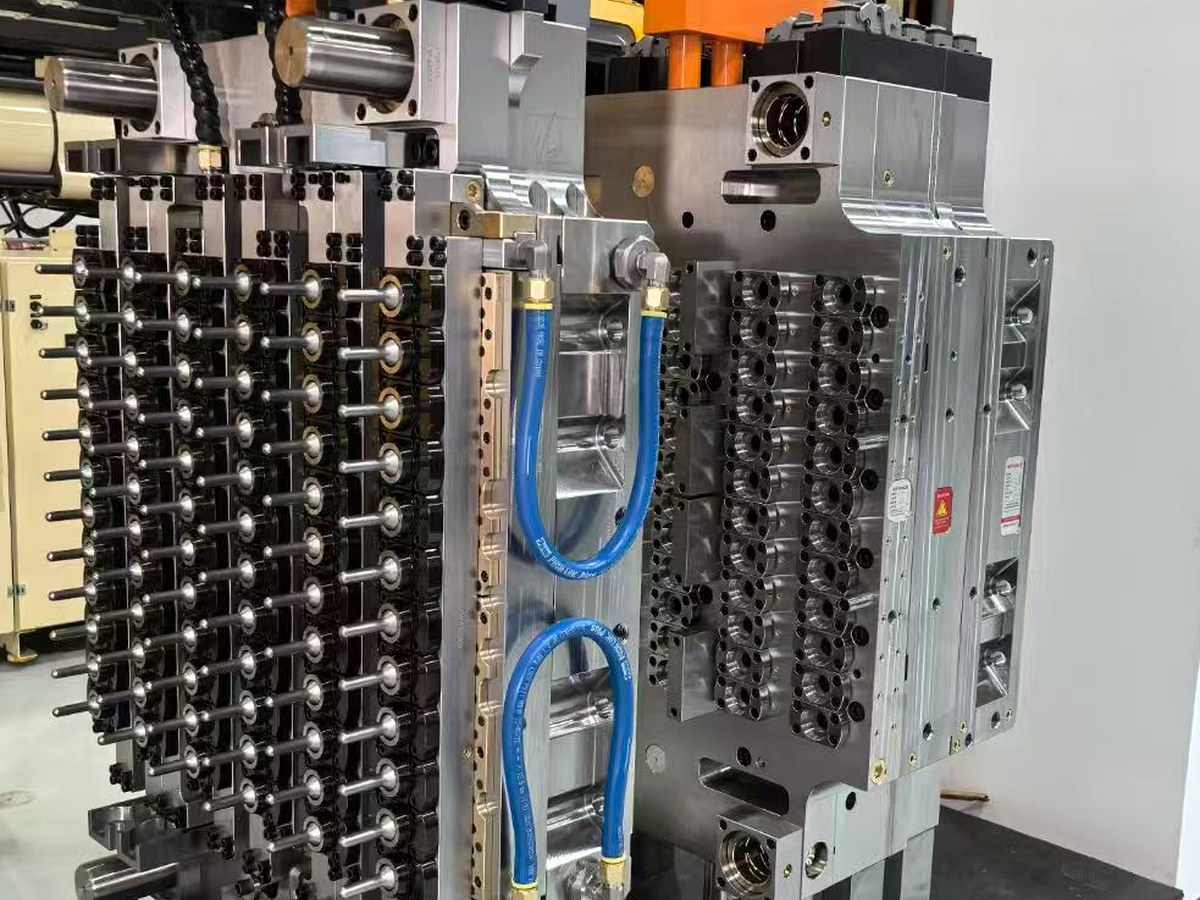

PET Preform Mold For Bottle Preform Production
Send Sample Or Drawing
PVC Pipe Fitting Mold For Elbows, Tees And Connectors
Send Sample Or Drawing
Plastic Pallet Mold For Heavy Duty Industrial Pallets
Send Sample Or Drawing
Bottle Cap Mold For Water, Beverage And Oil Caps
Send Sample Or Drawing
Custom service: cavity layout, steel selection, hot runner design, cooling system and trial mould support.
Mould Project
PVC Fitting Mold

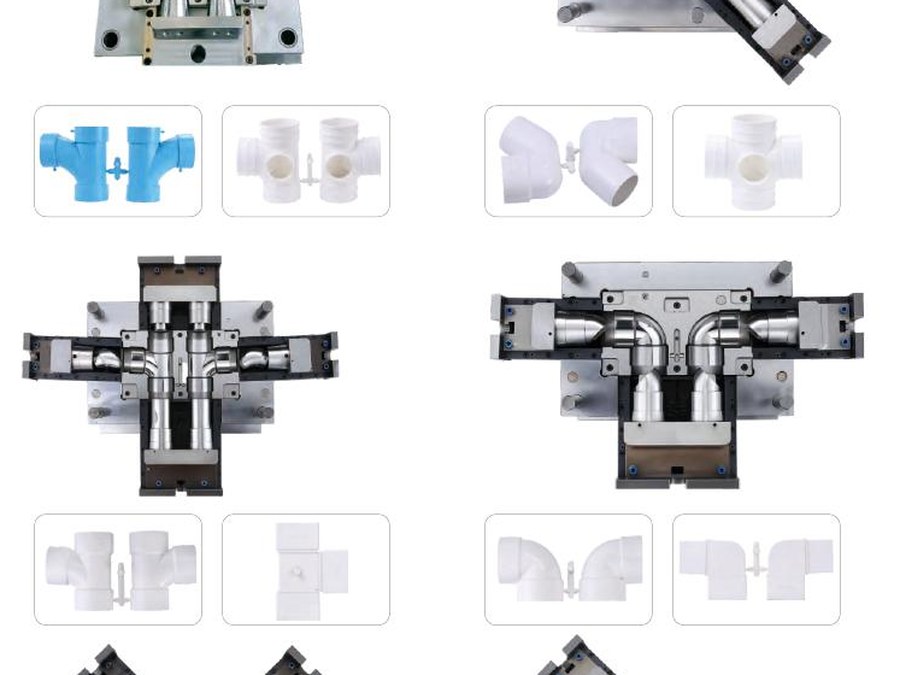

UPVC & CPVC Pipe Fitting Moulds For Elbows, Tees And Connectors
Send Sample Or Drawing

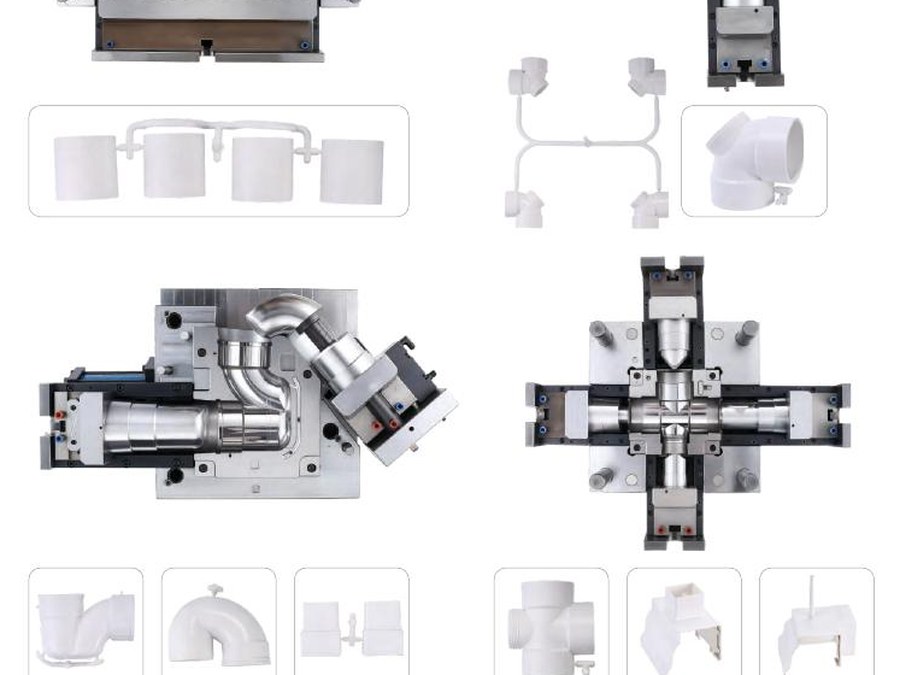

UPVC & CPVC Multi-Cavity Fitting Mold For Pipe Connectors
Send Sample Or Drawing

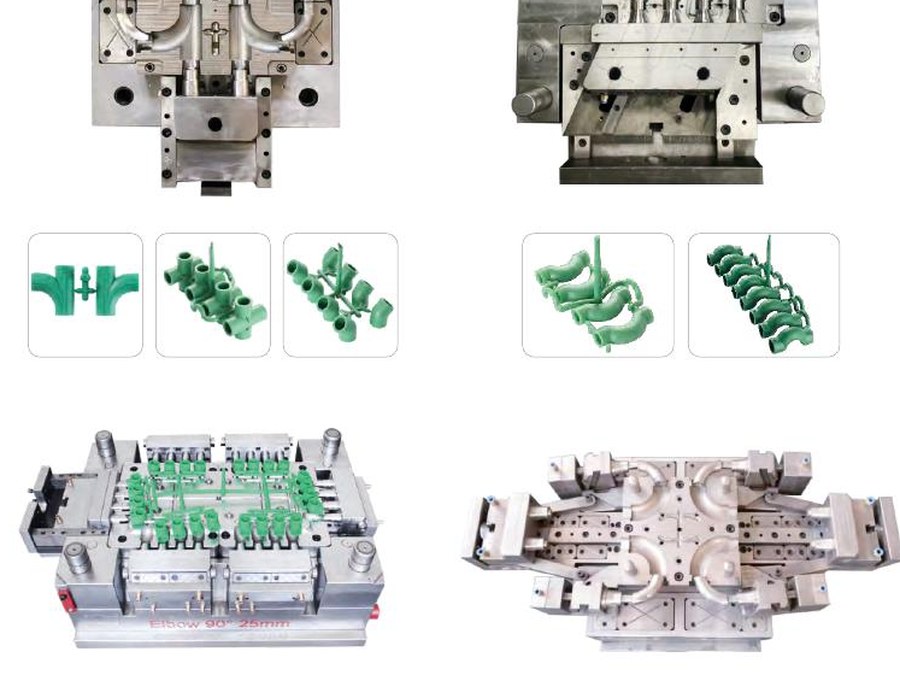

PPR Fitting Mold For Plumbing And Hot Water Systems
Send Sample Or Drawing

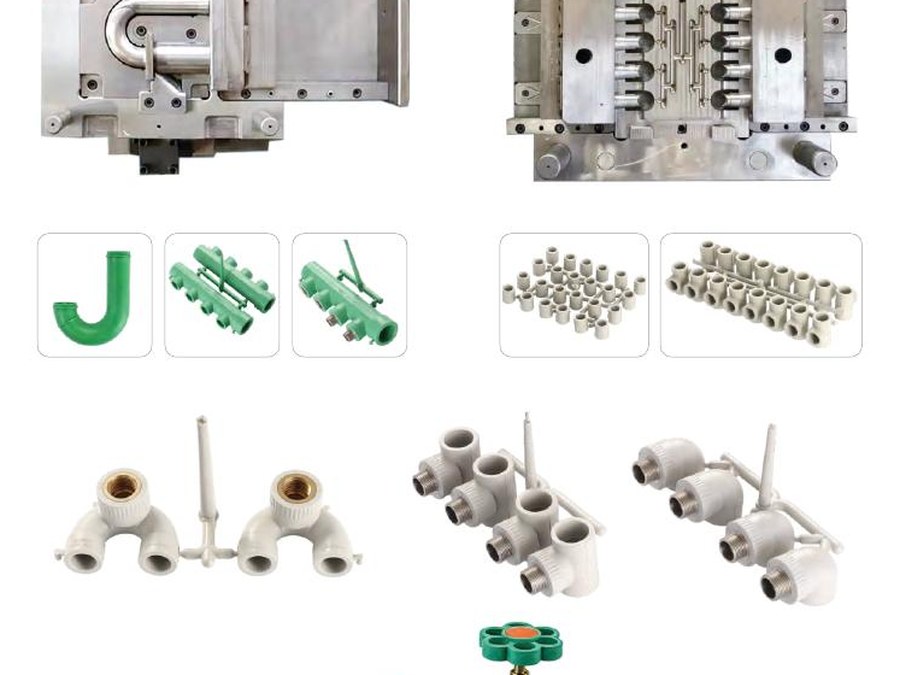

PPR Elbow, Tee And Connector Mold With Sample Fittings
Send Sample Or Drawing

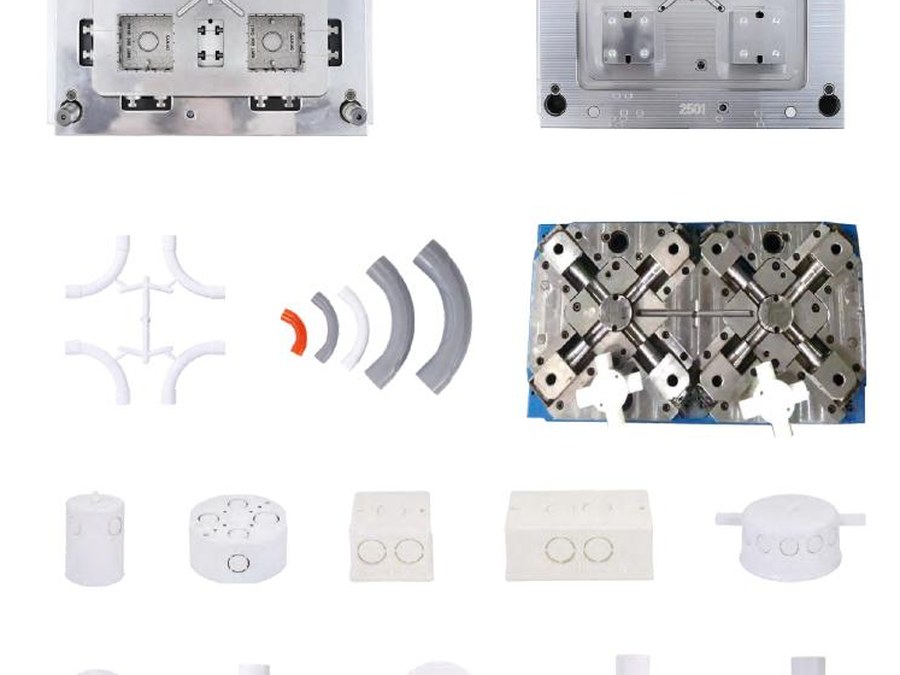

PVC, ABS & PP Wire Box And Spool Mold
Send Sample Or Drawing

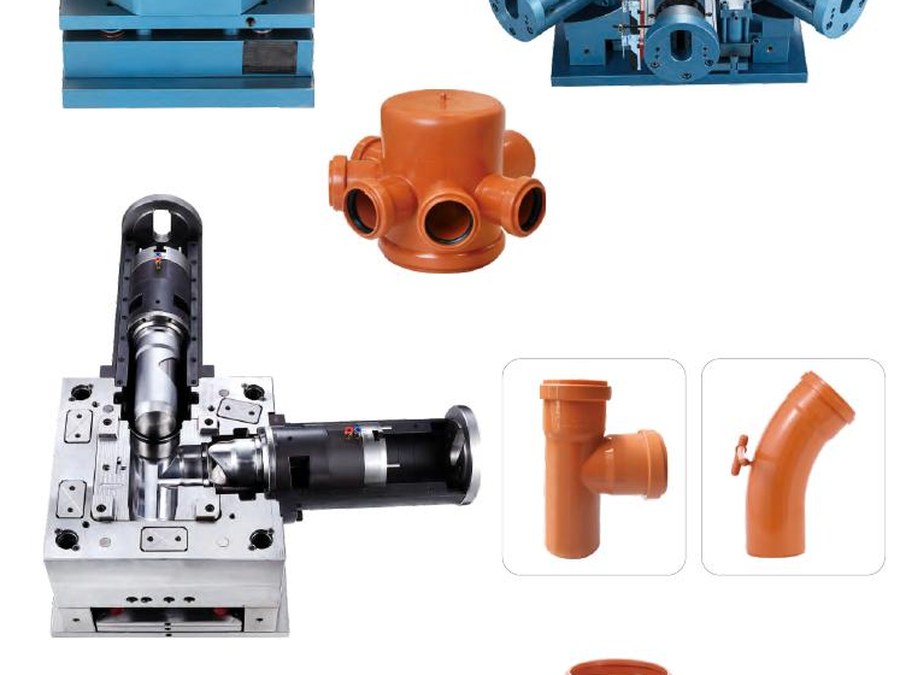

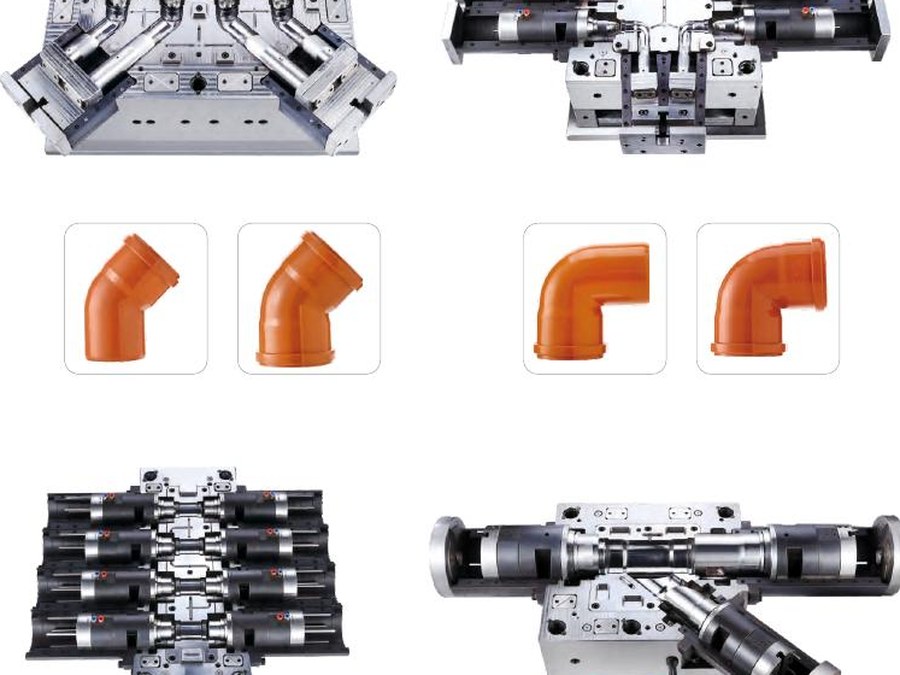

PVC & PP Collapsible Fitting Mold For Complex Pipe Parts
Send Sample Or Drawing
PVC & PP Collapsible Core Mold For Elbows And Special Fittings
Send Sample Or Drawing

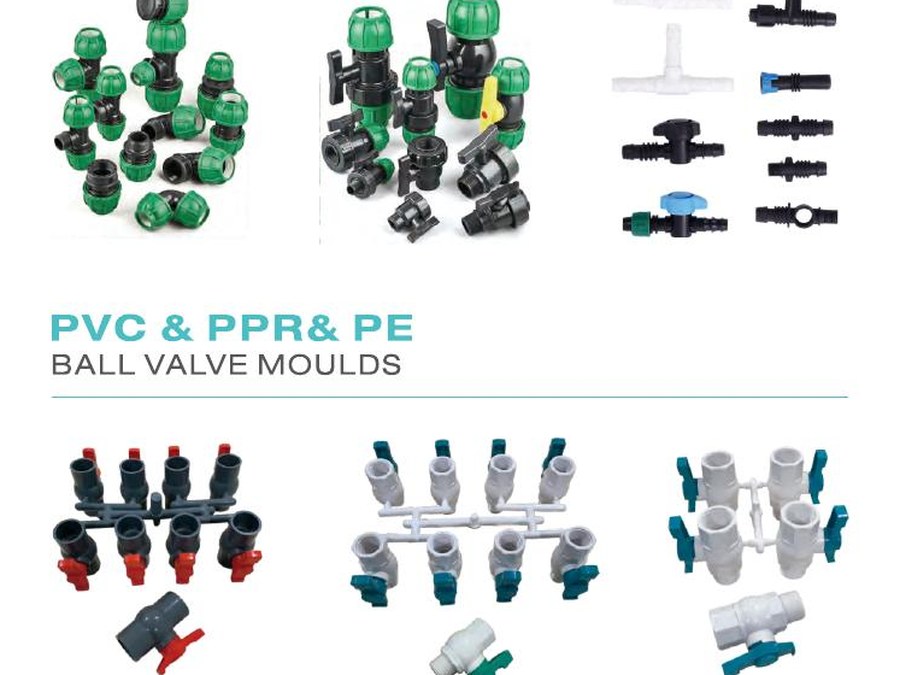

PVC, PPR & PE Ball Valve Mold And Fitting Mold
Send Sample Or Drawing
PVC fitting mold service covers fitting sample analysis, cavity layout, slider and collapsible core design, cooling layout, mold trial and production support.
Machine Project
Injection Molding Machine

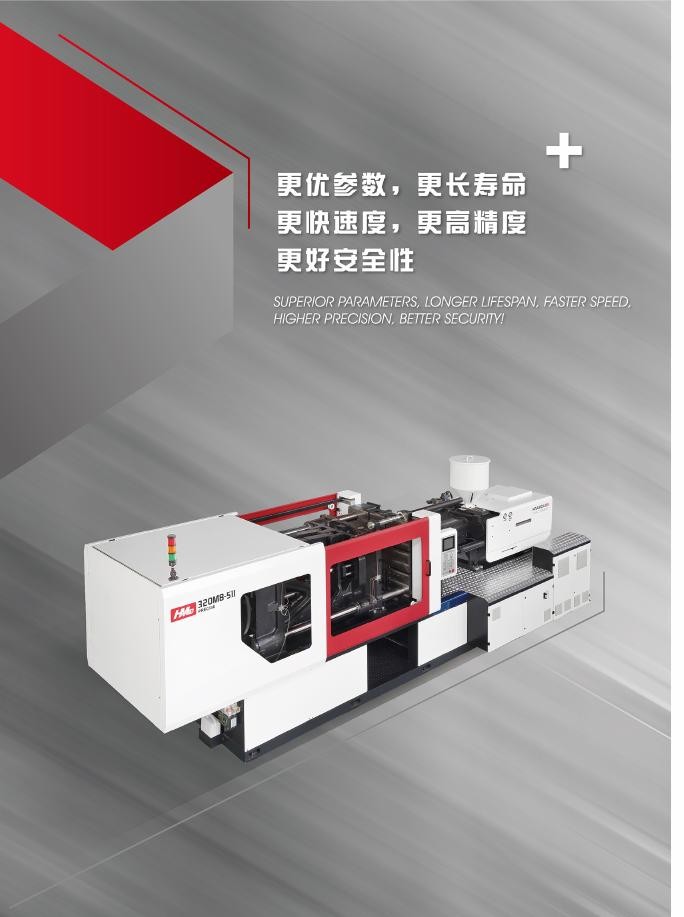

HMD M8-SII High Efficiency Energy Saving Injection Molding Machine
Full machine range from 90 ton to 3300 ton clamping force. Suitable for plastic caps, preforms, daily-use plastic products, pipe fittings, pallets and customized injection projects.
90-3300TClamping range
129-71638 cm3Injection volume
32-260 mmScrew diameter
M8-SIIEnergy-saving series
Injection Unit
International size rating, injection volume, PS injection weight, injection rate, screw diameter, injection pressure, L/D ratio, screw stroke and screw speed.
Clamping Unit
Clamping force, mold opening stroke, platen size, tie bar distance, max daylight, mold thickness, ejector stroke and ejector tonnage.
Power Unit
Hydraulic system pressure, pump motor power, heater power and temperature control zones.
Machine Data
Oil tank capacity, machine dimension, machine weight and machine foundation dimension.
| Model | Clamping Force | Injection Volume | Screw Diameter | Platen Size | Tie Bar Distance | Mold Thickness | Machine Dimension | Machine Weight |
|---|---|---|---|---|---|---|---|---|
| HMD90M8-SII | 900 kN | 129-201 cm3 | 32-40 mm | 535 x 535 mm | 360 x 360 mm | 150-360 mm | 4.0 x 1.2 x 1.9 m | 3.5 Ton |
| HMD130M8-SII | 1300 kN | 193-316 cm3 | 36-46 mm | 630 x 610 mm | 430 x 410 mm | 150-460 mm | 4.5 x 1.4 x 1.9 m | 4 Ton |
| HMD170M8-SII | 1700 kN | 239-441 cm3 | 39-53 mm | 710 x 690 mm | 480 x 460 mm | 180-520 mm | 4.9 x 1.4 x 2.1 m | 5 Ton |
| HMD218M8-SII | 2180 kN | 399-678 cm3 | 46-60 mm | 780 x 780 mm | 530 x 530 mm | 200-550 mm | 5.5 x 1.6 x 2.1 m | 7 Ton |
| HMD268M8-SII | 2680 kN | 589-1058 cm3 | 50-67 mm | 835 x 835 mm | 580 x 580 mm | 220-600 mm | 6.2 x 1.7 x 2.3 m | 9 Ton |
| HMD290M8-SII | 2900 kN | 589-1058 cm3 | 50-67 mm | 920 x 920 mm | 630 x 630 mm | 250-650 mm | 6.4 x 1.8 x 2.4 m | 11.5 Ton |
| HMD310M8-SII | 3100 kN | 712-1154 cm3 | 55-70 mm | 975 x 925 mm | 680 x 630 mm | 250-650 mm | 6.6 x 1.8 x 2.4 m | 11.5 Ton |
| HMD320M8-SII | 3200 kN | 829-1435 cm3 | 57-75 mm | 960 x 960 mm | 680 x 680 mm | 250-670 mm | 6.8 x 1.8 x 2.4 m | 12 Ton |
| HMD380M8-SII | 3800 kN | 1194-1809 cm3 | 65-80 mm | 1010 x 1010 mm | 710 x 710 mm | 250-710 mm | 7.1 x 1.9 x 2.4 m | 13.5 Ton |
| HMD430M8-SII | 4300 kN | 1385-2289 cm3 | 70-90 mm | 1032 x 1042 mm | 760 x 730 mm | 250-730 mm | 8.0 x 2.0 x 2.6 m | 18 Ton |
| HMD500M8-SII | 5000 kN | 1590-2550 cm3 | 75-95 mm | 1128 x 1168 mm | 830 x 830 mm | 300-820 mm | 8.3 x 2.1 x 2.6 m | 22 Ton |
| HMD600M8-SII | 6000 kN | 2262-3534 cm3 | 80-100 mm | 1210 x 1250 mm | 900 x 880 mm | 300-900 mm | 9.9 x 2.3 x 2.5 m | 25 Ton |
| HMD700M8-SII | 7000 kN | 2554-3896 cm3 | 85-105 mm | 1325 x 1345 mm | 970 x 930 mm | 350-960 mm | 10.4 x 2.4 x 2.7 m | 32 Ton |
| HMD800M8-SII | 8000 kN | 3180-5193 cm3 | 90-115 mm | 1420 x 1440 mm | 1020 x 1000 mm | 350-1000 mm | 11.5 x 2.5 x 3.3 m | 38 Ton |
| HMD900M8-SII | 9000 kN | 3308-5881 cm3 | 90-120 mm | 1560 x 1560 mm | 1080 x 1080 mm | 450-1100 mm | 11.9 x 2.7 x 3.4 m | 43 Ton |
| HMD1000M8-SII | 10000 kN | 3686-6381 cm3 | 95-125 mm | 1660 x 1660 mm | 1160 x 1160 mm | 450-1160 mm | 11.9 x 2.8 x 3.3 m | 47 Ton |
| HMD1100M8-SII | 11000 kN | 3686-6381 cm3 | 95-125 mm | 1710 x 1710 mm | 1180 x 1180 mm | 500-1180 mm | 12.8 x 2.8 x 3.4 m | 49 Ton |
| HMD1300M8-SII | 13000 kN | 5022-8302 cm3 | 105-135 mm | 1845 x 1815 mm | 1300 x 1250 mm | 550-1350 mm | 12.5 x 3.0 x 3.5 m | 61 Ton |
| HMD1500M8-SII | 15000 kN | 6232-9908 cm3 | 115-145 mm | 2060 x 1960 mm | 1460 x 1360 mm | 700-1400 mm | 13.8 x 3.0 x 3.7 m | 87 Ton |
| HMD1700M8-SII | 17000 kN | 7351-14074 cm3 | 120-160 mm | 2225 x 2095 mm | 1560 x 1430 mm | 700-1600 mm | 16.0 x 3.2 x 3.6 m | 103-105 Ton |
| HMD2000M8-SII | 20000 kN | 9291-20418 cm3 | 130-170 mm | 2425 x 2305 mm | 1720 x 1600 mm | 750-1600 mm | 17.8 x 3.5 x 3.7 m | 115-117 Ton |
| HMD2280M8-SII | 22800 kN | 25434-41542 cm3 | 180-210 mm | 2505 x 2380 mm | 1770 x 1600 mm | 800-1700 mm | 20.0 x 3.9 x 4.2 m | 148-154 Ton |
| HMD2400M8-SII | 24000 kN | 25434-41542 cm3 | 180-210 mm | 2615 x 2480 mm | 1850 x 1650 mm | 800-1800 mm | 20.4 x 4.2 x 4.0 m | 175-180 Ton |
| HMD2900M8-SII | 29000 kN | 37680-51908 cm3 | 200-230 mm | 2620 x 2520 mm | 2050 x 1750 mm | 900-1900 mm | 22.0-22.5 x 4.2 x 4.2 m | 204-210 Ton |
| HMD3300M8-SII | 33000 kN | 47493-71638 cm3 | 220-260 mm | 3150 x 2850 mm | 2250 x 1900 mm | 1000-2100 mm | 22.8-23.0 x 4.6 x 4.7 m | 250-270 Ton |
Machine selection can be matched by product weight, mold size, cavity quantity, production capacity and destination power standard.
About Us
Jabari Tech (Taizhou) Co., Ltd.
Jabari Tech (Taizhou) Co., Ltd., 嘉巴瑞科技（台州）有限公司, is an industrial company focused on polymer raw materials, plastic moulds, injection molding machines and related manufacturing supply chains. Our vision is to build a reliable industrial supply platform in the polymers area and create superior value for global customers.
Our products include PP, PET, PVC, PS, ABS, plastic cap moulds, PET preform moulds, PVC pipe fitting moulds, pallet moulds and injection molding machines. We provide quality inspection, production coordination, customs declaration and logistics support to help customers receive goods safely and efficiently.
With an experienced team, we focus on reliable quality, fast response, cost optimization and long-term cooperation with global customers.
Industrial supply
Multiple polymer categories and stable factory supply channels.
Production support
Quality inspection, production coordination and logistics support.
Customer support
Fast quotation, clear product matching and long-term service.
Leave A Message
Send Your Requirements
Please leave your correct email and detailed requirements. More information helps us recommend the right material and quotation faster.
Email: jabari@126.com
Tel / WhatsApp: +86 13706571648
Taizhou City, Zhejiang Province, China
